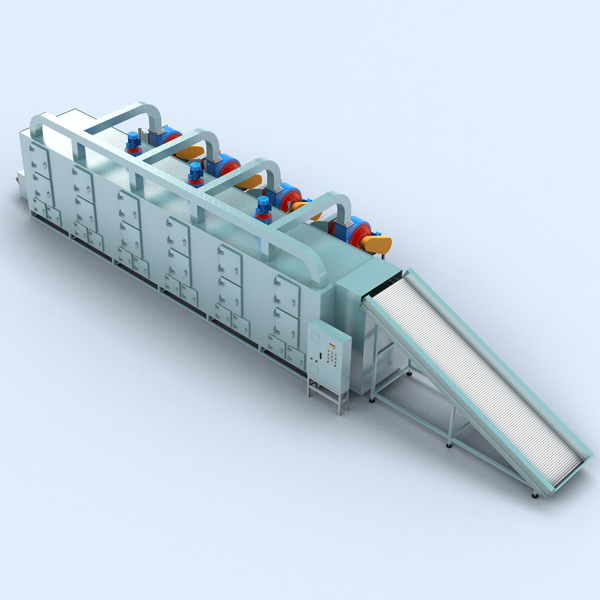

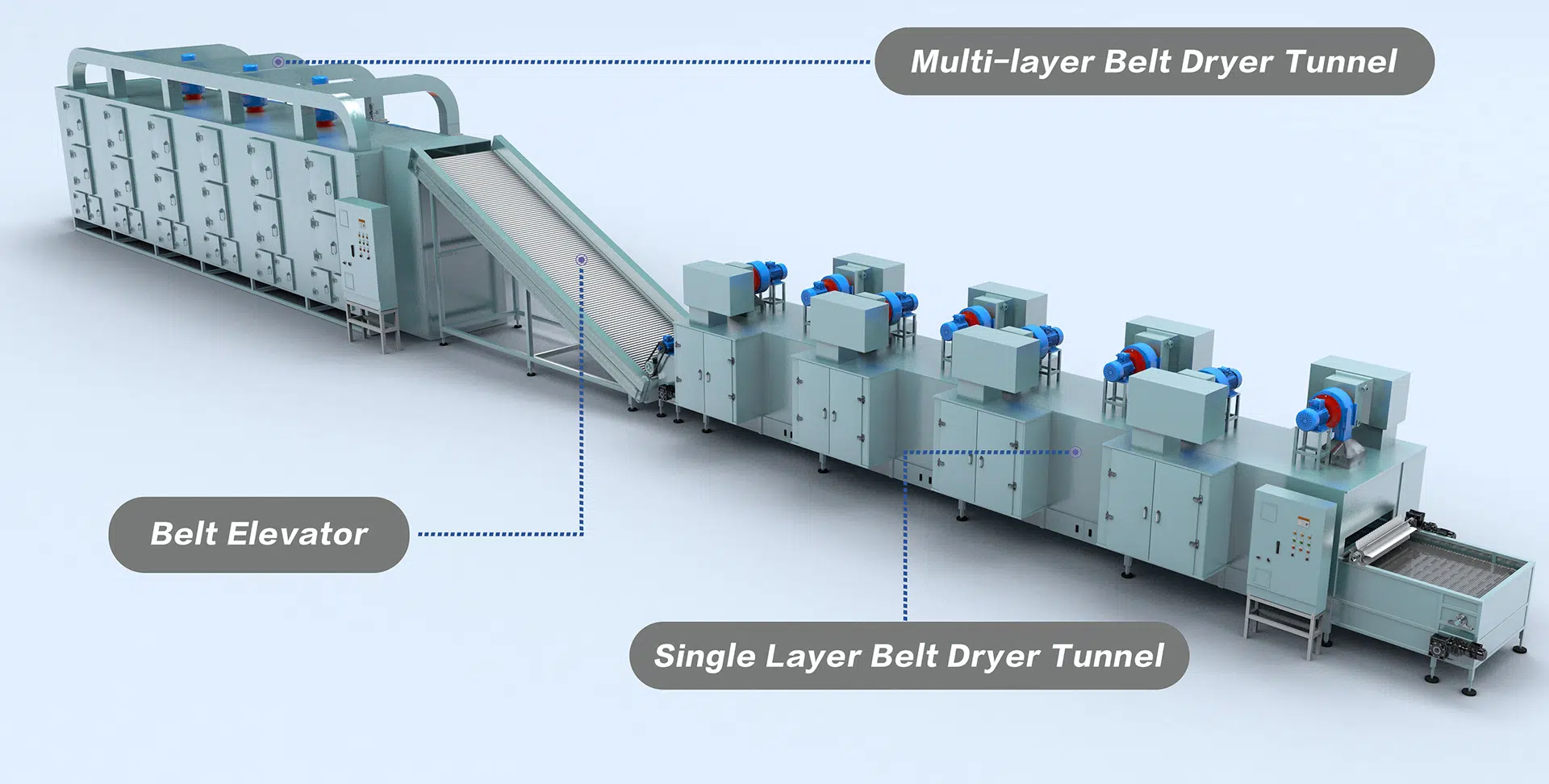

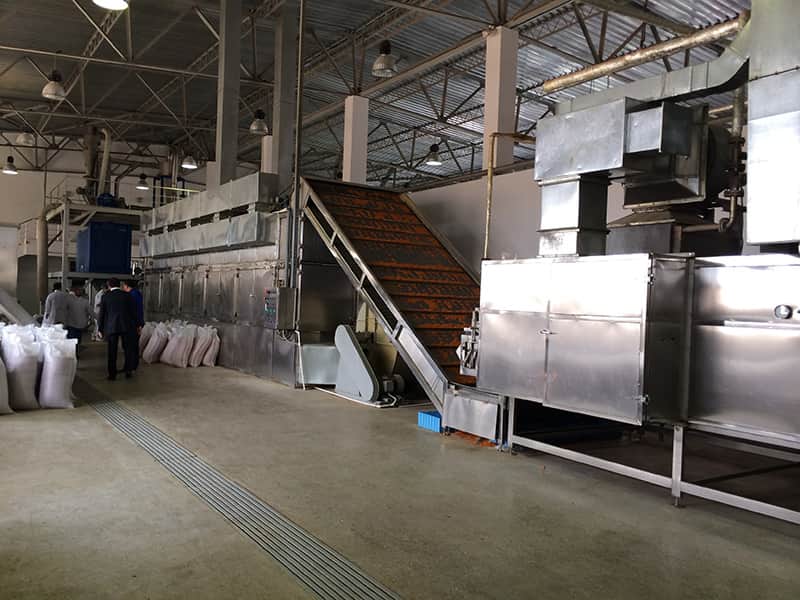

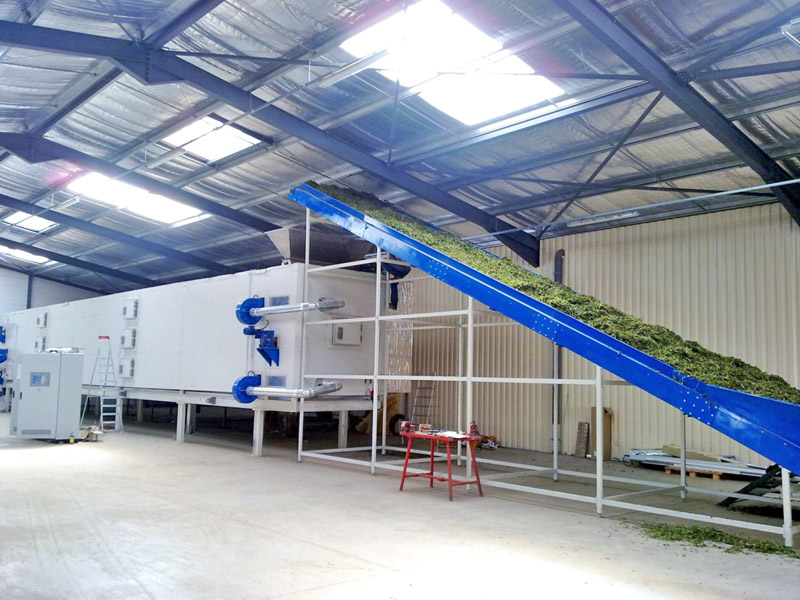

HS Series Muliti-layer Belt Dryer Tunnel

It can work as ovens, roasters, toasters and coolers for wide variety of applications. The belt dryer uses air to transfer heat and remove moistrue as the product moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized. And as there are no
turnovers or drops during drying progress, the balanced drying can be ensured. With the automatic mixer and scraper feed the materials smoothly to the following process.

PRODUCT DETAILS

PRODUCT OVERVIEW

High Efficient Thermal Processing

Automatic belt dryers utilize distinct temperature zones that are independent of each other in order to tailor the thermal process and optimize heat/mass transfer efficiency. The product passes through these individual processing zones and is subjected to carefully controlled airflow and temperature conditions. Accurate regulation of airflow volume, temperature, and humidity facilitates the preservation or creation of desired product attributes while simultaneously ensuring high operating efficiency and low utility costs. By employing an intersecting air duct design, moisture uniformity is maximized and consistent airflow is delivered to both sides of the product bed.

Customized Design Offers Best Performance

Each belt dryer’s design is tailored to meet the unique processing demands of the customer’s various products, resulting in optimal performance that satisfies the specific thermal and dehydration processing requirements of the product. Customers can specify parameters such as infeed and discharge, among others, to ensure that the unit seamlessly integrates with the plant design.

The Design Of The Equipment Conforms To High Sanitary And Safety Standards

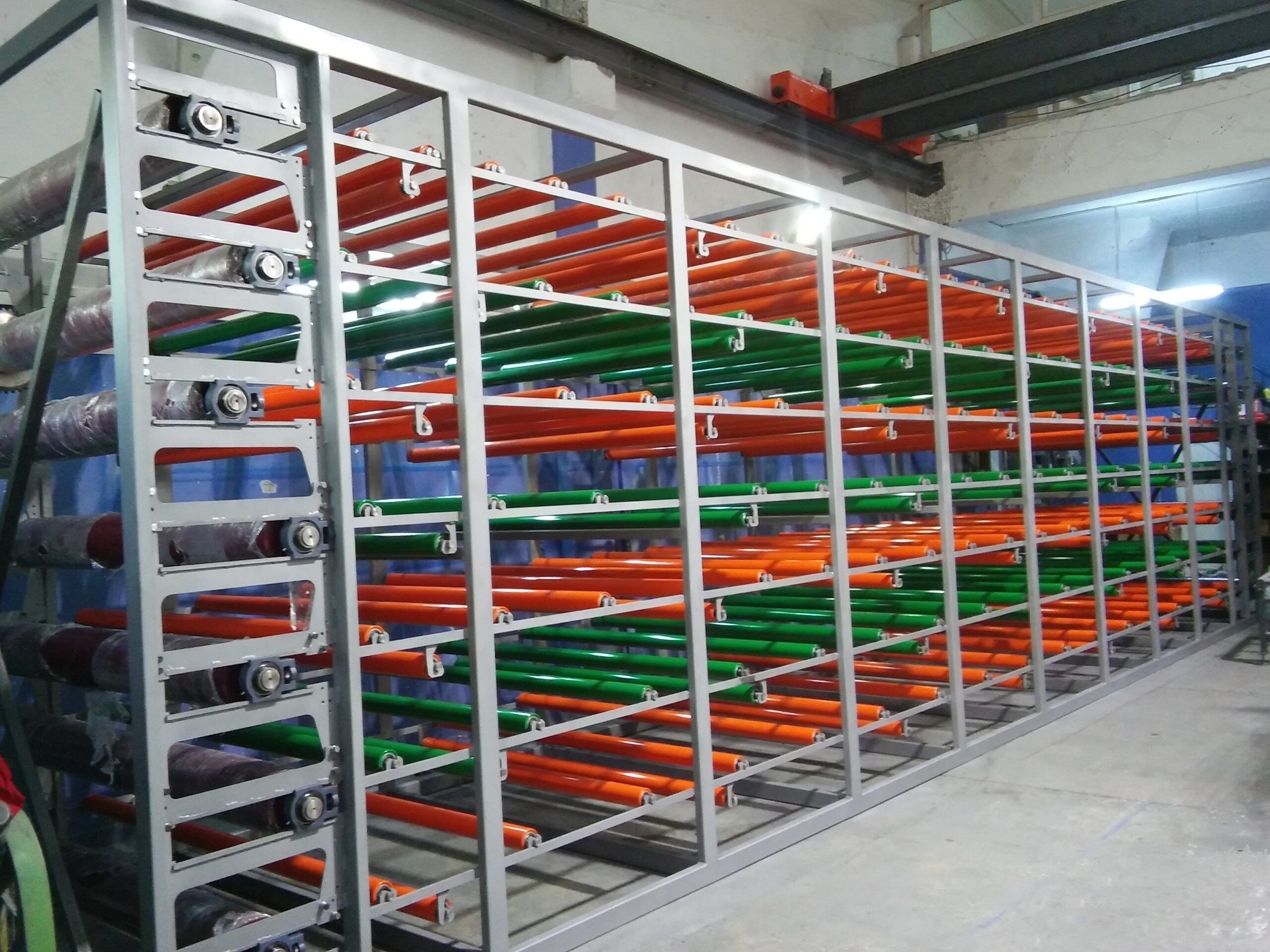

Flexible assembly results in cost efficiency

The HS series belt dryer offers modular design options that effectively reduce costs associated with packing, installation, and commissioning. Customers can choose between pre-assembled or field-assembled transportation methods. Pre-assembly saves time and on-site costs, while field assembly allows for installation in tight plant conditions and reduces shipping expenses.

APPLICATIONS

Automatic belt dryers are extensively utilized in the processing of a wide range of industrial products, including snack food, granola cereals, dehydrated fruits and vegetables, synthetic rubber, polymers, chemicals, and more. It is particularly well-suited for drying flake, strip, and granular materials with good ventilation. Even paste materials such as filter cakes can be dried using a granulator or extrusion mechanism. The belt dryer can function as an oven, roaster, toaster, or cooler for a variety of applications. The product moves along a conveyor bed through multiple temperature zones, with air transferring heat and removing moisture. The addition of a rotary feeding device allows for even spreading, and because there are no turnovers or drops during drying, balanced drying is ensured. An automatic mixer and scraper feed materials smoothly into the subsequent processes.

SPECIFICATIONS

	HS-II-1.6-I Feed Section	HS-II-1.6-II Mid Section	HS-II-1.6-III Discharge Section	HS-II-2-I Feed Section	HS-II-2-II Mid Section	HS-II-2-III Discharge Section
Width Of Belt	1.6	1.6	1.6	2	2	2
Length Of Drying Section(m)	10	10	10	10	10	8
Thickness Of Material To Be Covered(mm)	≤100	≤100	≤100	≤100	≤100	≤100
Temperatuer(℃)	50-150	50-150	50-150	50-150	50-150	50-150
Heat Exchange Area(㎡)	525	398	262.5	656	497	327.5
Steam Pressure(Mpa)	0.2-0.8	0.2-0.8	0.2-0.8	0.2-0.8	0.2-0.8	0.2-0.8
Drying Time(H)	0.2-1.2	0.2-1.2	0.2-1.2	0.2-1.2	0.2-1.2	0.2-1.2
Power(Kw)	0.75	0.75	0.75	0.75	0.75	0.75
Overall Dimensions(m)	12×1.8×1.9	12×1.8×1.9	12×1.8×1.9	12×2.4×1.92	12×2.4×1.92	12×2.4×1.92
