As we all known that the size and the weight of the shrimp are the positive correlation relation. This grading machine use the size differences to classifer the shrimp, prawn, sardin and other materials. Take the prawn as example. The prawn will be fed into a tank with some mixed water to sink for some minutes, then will be elevated up, meanwhile, there are sparyers to flush the prawn. After that, the prawn will fall down onto the second elevator for second washing. At last they will be conveyed to the units of rollers to be classified. Two rollers (as one unit) are rotating oppositely from middle to two sides. That makes sure the rollers will not damage the prawn. The gaps between rollers are different from the one end to another end, so the forwarding prawn will fall down when prawn size is less than the gaps. The graded prawn will be conveyed by several conveyors.
As we all known that the size and the weight of the shrimp are the positive correlation relation. This shrimp grading machine(prawn grading machine) use the size differences to classifer the shrimp, prawn, sardin and other materials.

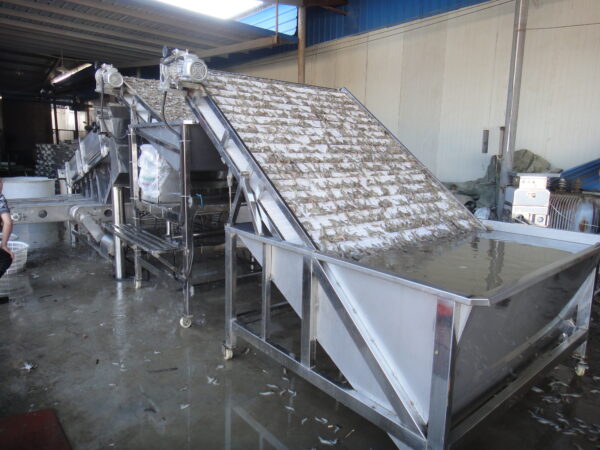

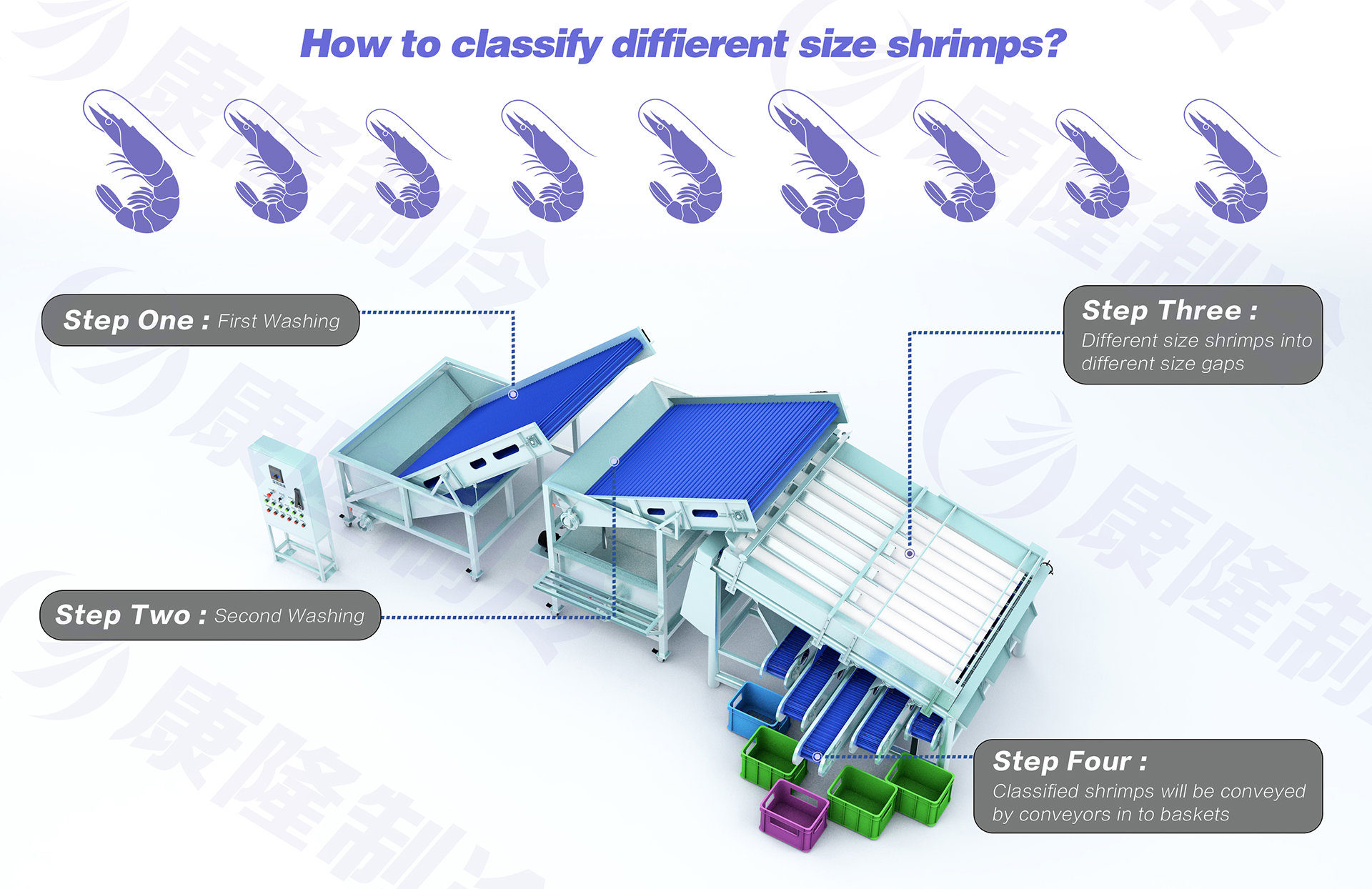

Take the prawn as example. First,the prawn will be fed into a tank with some mixed water to sink for some minutes, then will be elevated up, meanwhile, there are sparyers to flush the prawn. After that , the prawn will fall down onto the second elevator for second washing.

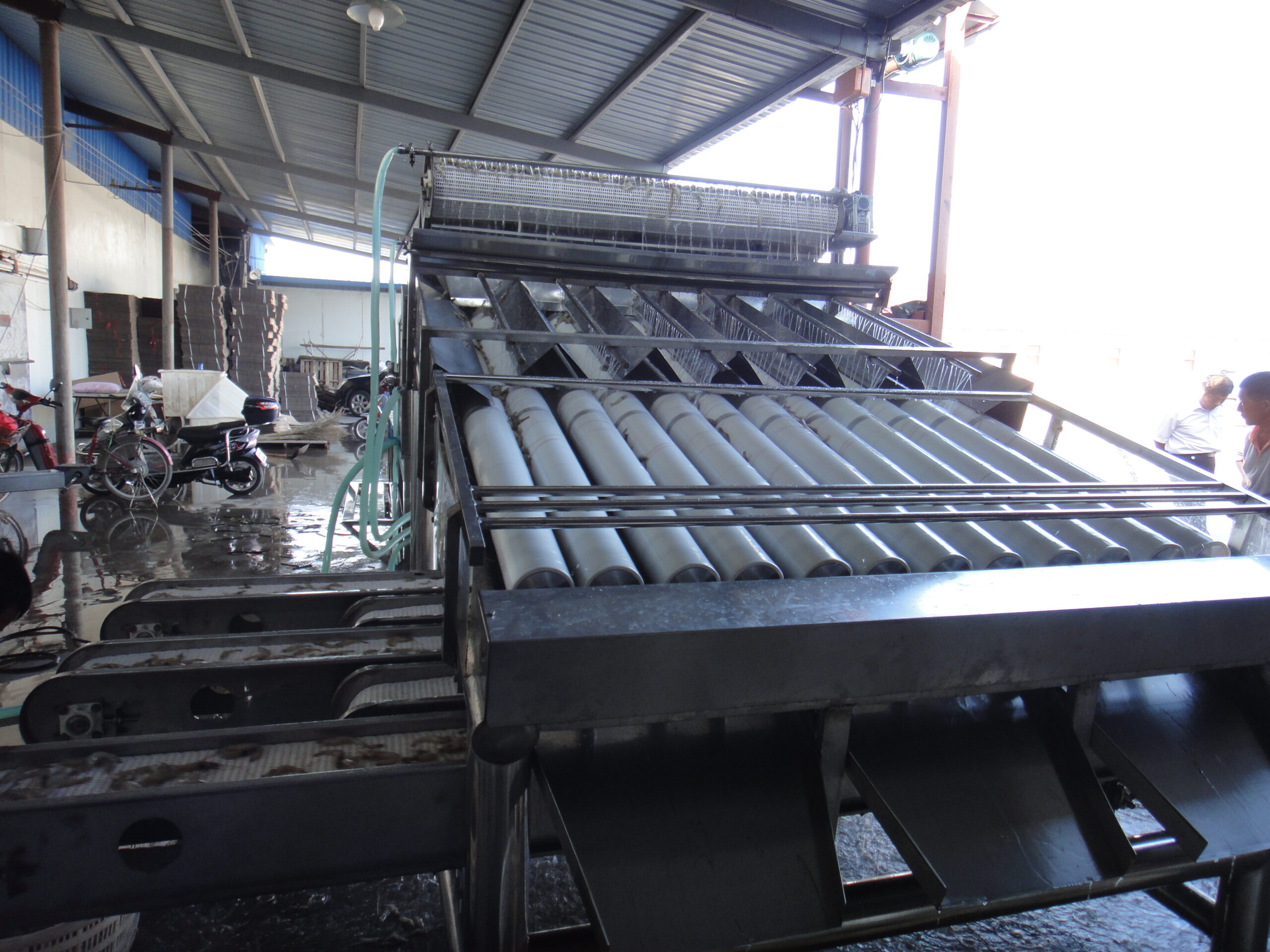

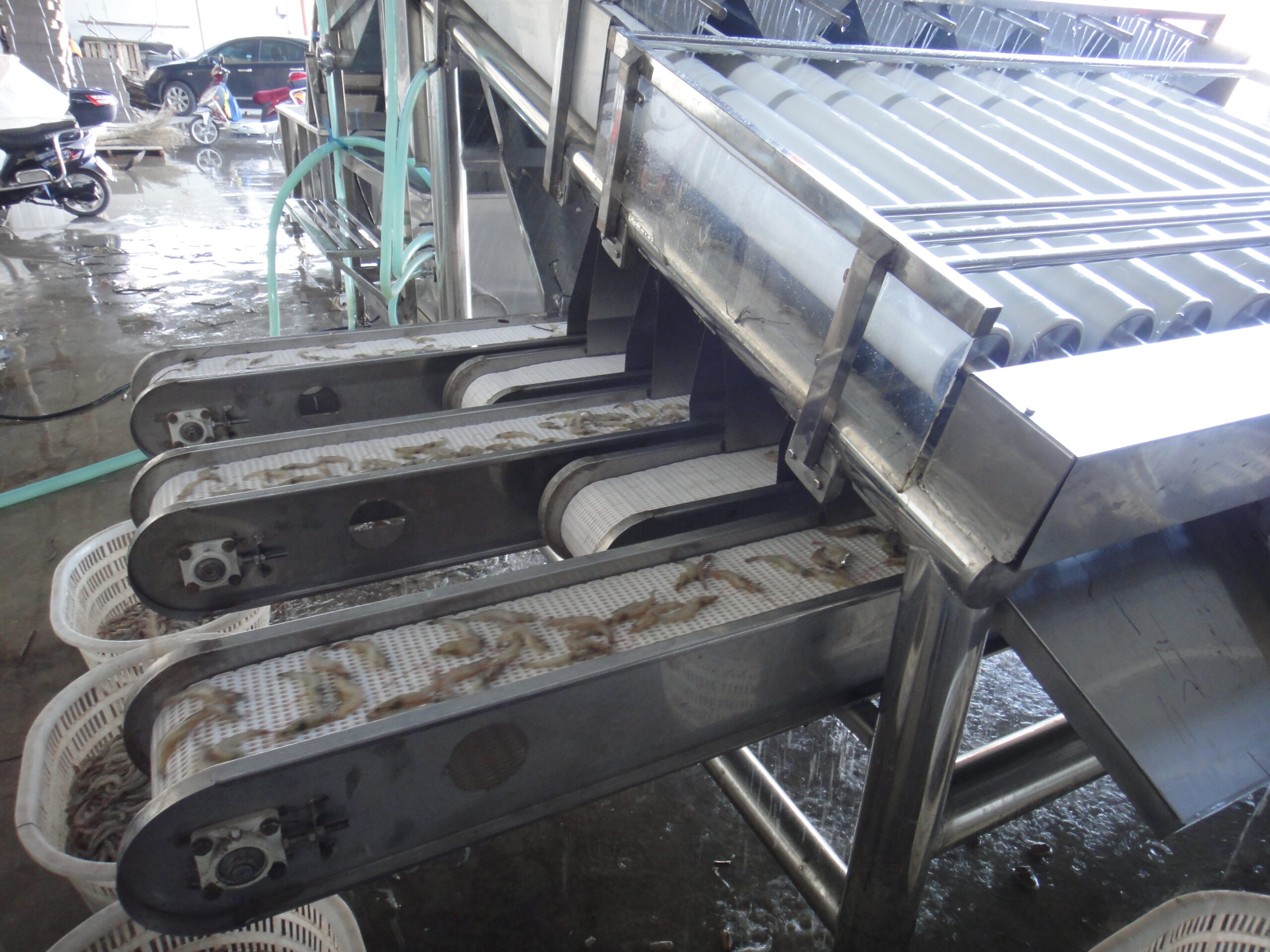

Finally, they will be conveyed to the units of rollers to be classified. Two rollers (as one unit) are rotating oppositely from middle to two sides. That makes sure the rollers will not damage the prawn. The gaps between rollers are different from the one end to another end, so the forwarding prawn will fall down when prawn size is less than the gaps. Therefore , the graded prawn will be conveyed by several conveyors.
The shrimp grading machine is suitable for grading head shrimp, headless shrimp, shrimp meat and other similar shape products.

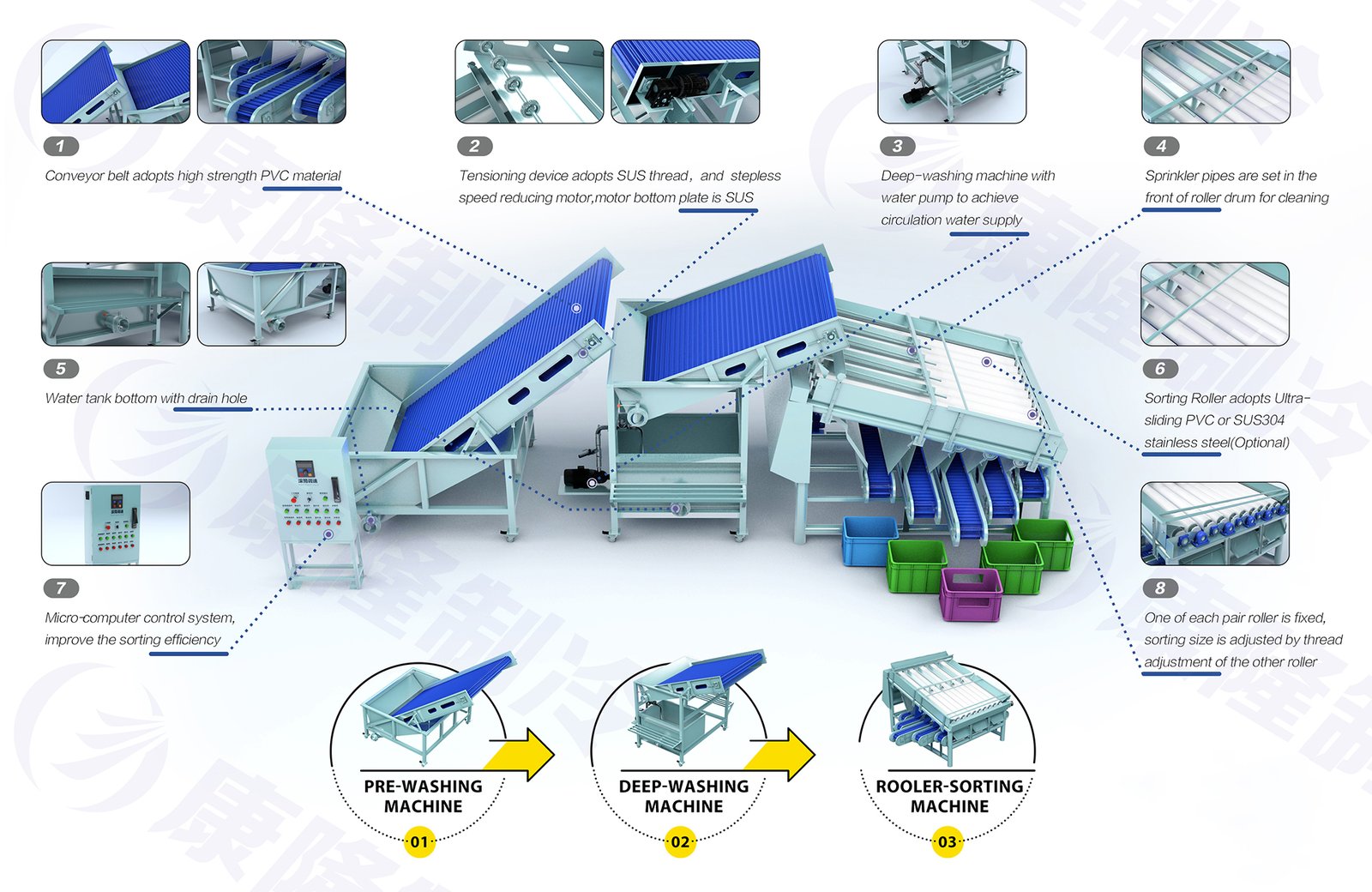

1. The prawn grading machine adopts rotary drum with low friction, improve grading efficiency.
2. Equipped with conveyor belt for different size shrimp, application widely.
3. Twice hoist. Improve the evenness of distribution, enhance accuracy rating.
4. Double cleaning equipment in hoist place and enter place, enhance cleaning effect.
5. Use Mico-computer control system, improve the grading efficiency.
6. Stainless steel with good quality.
| Model No. | KSG-1000 | Quatity Of Rollers | 8 rollers |
| Taille globale | 5260mm x 1300mm x 2250mm | Power | 3.6Kw |
| Model No. | KSG-2000 | Quatity Of Rollers | 12 rollers |
| Taille globale | 7500mmx1900mm x2200mm | Power | 4.1Kw |
| The sizing standards for headless “shell-on” shrimp tails are: | |||
| 16 – 20 count/pound; 21 – 25 count/pound; 26 – 30 count/pound 31 – 35 count/pound; 36 – 40 count/pound; 41 – 50 count/pound 51 – 60 count/pound; 61 – 70 count/pound: 71 – 80 count/pound 81 – 90 count/pound |
|||
